CPU Cooler Tranquillo

Features:

  • 4 Power Heatpipes
  • Intelligent PWM Fan Control Curve
  • Silent Operation
  • High Airflow
  • Optimized Fan Blade
  • 5 Years Warranty

Tranquillo (CC-TranQ-01-A)

Applications:

Intel Socket 775, 1366, 1155 and 1156:
CPU: All Pentium D/ Pentium 4/ All Celeron D/ All Pentium Dual-Core/ Extreme/ All Core 2 Extreme/ Core 2 Quad/ Core 2 Duo, Core i5, Core i7

AMD Socket 754/ 939/ 940/ AM2/ AM2+/ AM3/ FM1:
CPU: All Athlon 64 X2, Athlon 64, All Athlon 64 FX, Opteron, Sempron, Phenom, Phenom II

All brands and trademarks are the property of their respective owners.


Design Concept of Tranquillo:

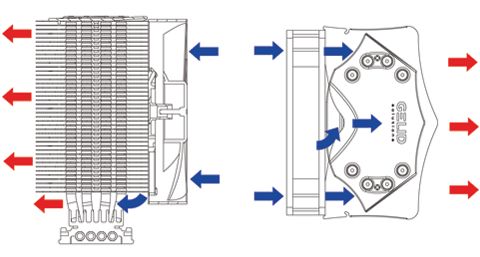

The tower CPU Cooler “Tranquillo” uses 4 power heat pipes and a special heat pipe constellation to achieve best heat transfer from CPU core to the aluminium fins in its class. After precise software simulation and calculation during the development stage a unique heat sink shape was created to lower air flow resistance as much as possible.

A silent 120mm fan with the intelligent GELID PWM (Pulse Width Module) control has been chosen to make this heat sink more valuable. The fan blades were optimised to guarantee high airflow while running silently. The intelligent GELID PWM curve keeps the fan silent when no necessary cooling is needed and  accelerates the fan speed whenever additional cooling is needed. The multi-award winning high performance GC-2 thermal compound is already included in the package.

To prevent any conflicts with the components on your motherboard please check with this dimension restriction drawing:



Additionally mounting clips for AMD 754/ 939/ 940/ AM2/ AM2+ and for Intel 775, 1366 and latest 1156 sockets as same as back plates for Intel LGA 775, Core i5 and Core i7 boards are all included. The cooler is RoHS and WEEE conform and carries a 5 year warranty. Please have a look at the installation manual.



MSRP: USD 38/ Euro 28
