Rev. 2 Tranquillo (CC-TranQ-02-A)
Intel Socket 775, 1366, 1155, 1156 & 1150:
CPU: All Pentium D/ Pentium 4/ All Celeron D/ All Pentium Dual-Core/ Extreme/ All Core 2 Extreme/ Core 2 Quad/ Core 2 Duo, Core i5, Core i7
AMD Socket AM2/ AM2+/ AM3/ FM1/ FM2/ FM2+:
CPU: All Athlon 64 X2, Athlon 64, All Athlon 64 FX, Opteron, Sempron, Phenom, Phenom II
All brands and trademarks are the property of their respective owners.
Design Concept of Tranquillo:

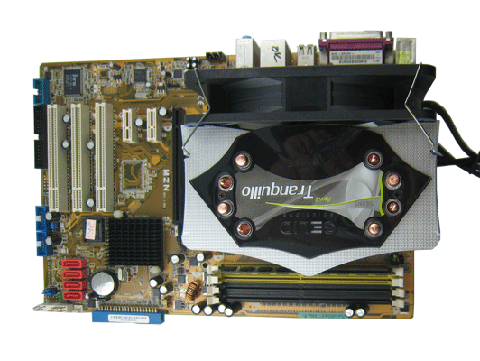

The tower CPU Cooler “Rev. 2 Tranquillo” uses 4 power heat pipes and a special heat pipe constellation to achieve best heat transfer from CPU core to the aluminum fins in its class.
New of Rev. 2 Tranquillo:
The heat pipe constellation was optimized to prevent any conflict from the components on latest mainboards in the market. Additionally the shape of the small heat sink was optimized for a better heat transfer.
Rev. 2 Tranquillo Tranquillo
The clip for the AMD socket was modified to enable to install the cooler in 4x90° directions.

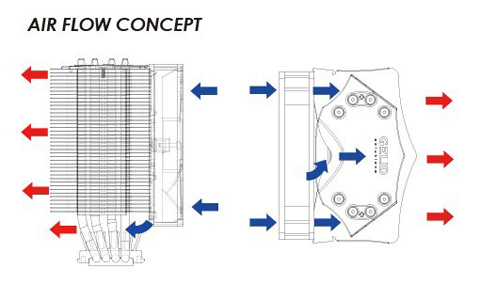

After precise software simulation and calculation during the development stage a unique heat sink shape was created to lower air flow resistance as much as possible.
A silent 120mm fan with the intelligent GELID PWM (Pulse Width Module) control has been chosen to make this heat sink more valuable. The fan blades were optimised to guarantee high airflow while running silently. The intelligent GELID PWM curve keeps the fan silent when no necessary cooling is needed and accelerates the fan speed whenever additional cooling is needed. The multi-award winning high performance GC-2 thermal compound is already included in the package.
To prevent any conflicts with the components on your motherboard please check with this dimension restriction drawing of Rev. 2 Tranquillo:

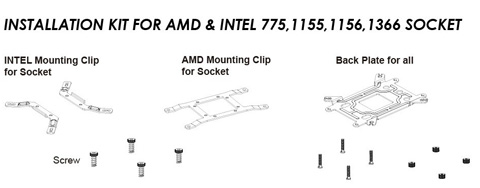

Additionally mounting clips for AMD AM2/ AM2+ and for Intel 775, 1366, 1155 and latest 1156 sockets as same as back plates for Intel LGA 775, Core i5 and Core i7 boards are all included.
The cooler is RoHS and WEEE conform and carries a 5 year warranty. Please have a look at the installation manual.
MSRP: USD 40/ Euro 30
